APC Smart UPS RT 10kVA Double Conversion Online 10kW 208V SURT10000XLI

  • 1
  • 2
  • 3

Brand Name : APC

Model Number : SURT10000XLI-CH

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T

Nominal Input Voltage : 208V, 240V

Replacement Battery : RBC44

Control Panel : Multi-function LCD status and control console

Audible Alarm : Alarm when on battery, distinctive low battery alarm, configurable delays

Nominal Output Voltage : 208V, 240V

Input Frequency : 50/60 Hz

Input Connections : NEMA L5-30P, NEMA L6-30P, Hard Wire 3-wire (2PH + G)

Battery Type : Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Battery Life : 3 - 5 years

Surge Energy Rating : 480 Joules

Output Connections : NEMA 5-15R, NEMA 5-20R, NEMA L5-20R, NEMA L6-20R, NEMA L14-30R, Hard Wire 3-wire (H N + G)

Topology : Double Conversion Online

Output Power Capacity : 10kVA/10kW

Interface Port(S) : DB-9 RS-232, SmartSlot, USB

Contact Now

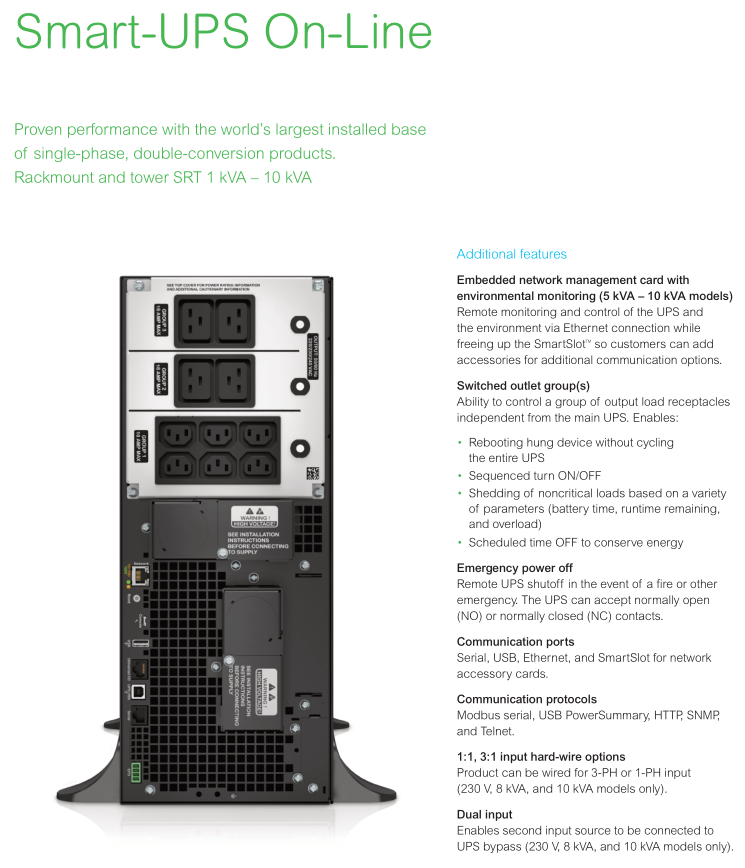

Discover Smart-UPS On-Line

  • APC Smart UPS RT 10kVA Double Conversion Online 10kW 208V SURT10000XLI

    Industry-Leading Power Protection

    A compact, high-density UPS for servers, voice and data networks, medical labs and light industrial applications. Double-conversion On-Line technology provides consistent, clean power and helps protect your IT equipment at the most critical moments.

Benefits of Smart-UPS On-Line

APC Smart UPS RT 10kVA Double Conversion Online 10kW 208V SURT10000XLI

Industry-leading protection

High density, double-conversion On-Line power protection delivers clean power with zero transfer time, and helps guard your critical electronics and data against dangerous power conditions and disturbances.
APC Smart UPS RT 10kVA Double Conversion Online 10kW 208V SURT10000XLI

Reliable source of uninterrupted power

Provides a reliable source of uninterrupted power even in the most demanding power environments, including a very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
APC Smart UPS RT 10kVA Double Conversion Online 10kW 208V SURT10000XLI

More runtime for business continuity

Designed with the ability to meet aggressive runtime requirements, Smart-UPS On-Line can be configured with multiple live swappable battery packs that not only enable extended runtime but can be replaced without powering down.

Adaptability

  • Rack/Tower convertible - Rack-mount and tower installation options enable flexible setup.
  • Extended runtime external battery options - Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.

Manageability

  • Serial connectivity - Provides management of the UPS via a serial port.
  • SmartSlot and/or Embedded NMC - Customize UPS capabilities with management cards.
  • EcoStruxure Ready - Provides remote UPS monitoring and management options.
  • LED status indicators and audible alarms - Quickly understand unit and power status with visual and audible indicators.

Availability

  • Automatic internal bypass - Supplies utility power to the connected loads in the event of a UPS power overload or fault.
  • Automatic restart of loads after UPS shutdown - Automatically starts up the connected equipment upon the return of utility power.
  • Live-swap capable - Add or swap batteries without interrupting the UPS load.
  • Intelligent battery management - Maximizes battery performance, life, and reliability through intelligent, precision charging.

Protection

  • Frequency and voltage regulation - Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
  • Safety-agency approved - Ensures the product has been tested and approved to work with the connected service provider equipment and within the specified environment.
  • Resettable circuit breaker - Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)
  • Cold-start capable - Provides temporary battery power when the utility power is out.

Serviceability

  • Disconnected battery notification - Warns when a battery is not available to provide backup power.
  • Predictive failure notification - Provides early-warning fault analysis ensuring proactive component replacement.
  • Automatic self-test - Periodic battery self-test ensures early detection of a battery that needs to be replaced.
  • User-replaceable batteries - Increases availability by allowing a trained user to perform upgrades and replacements of the batteries.

Specifications

Overview
Lead time Usually in Stock

Main
Run time for load
W
information_stroke
Min-max: 1000-10000 W
3min 44s
Max. Capacity Used
information_stroke
100 %
Main Input Voltage 208 V
Other Input Voltage 240 V
Main Output Voltage 208 V
Other Output Voltage 240 V
Kw Rating 10000 W
Rated power in VA 10000 VA
output connection type 4 IEC 60320 C13
3 IEC Jumpers
4 IEC 60320 C19
Output connector type Hard Wire 3-wire (2PH + G) 1
Provided equipment CD with software
Documentation CD
Installation guide
Temperature Probe
USB cable
Warranty card
Web/SNMP Management Card

Batteries & Runtime
Run Time View Runtime Graph
action_new_window
Efficiency View Efficiency Graph
action_new_window
Battery Type Lead-Acid battery
Included Battery Modules 0
Typical recharge time 1.5 h
RBC Quantity 2
Battery Voltage +/-192 V (split battery referenced to neutral)
Battery Charge Power (Watts) 1191 W rated
Battery Life 3…5 year(s)
Replacement battery APCRBC140
action_new_window
SRT192BP2US
action_new_window
SRT192RMBPUS
action_new_window
Extendable Run Time 1

General
Topology Double Conversion Online
product web sub-family High density
Number of power module free slots 0
Number of power module filled slots 0
Redundant No

Physical
color Black
Height 17.01 in (43.2 cm)
Width 10.35 in (26.3 cm)
Depth 28.15 in (71.5 cm)
Net Weight 245.99 lb(US) (111.58 kg)
Mounting Location Front
Mounting preference No preference
Mounting Mode Rack-mounted with kit
Two post mountable 0
USB compatible Yes

Input
Input Frequency 40 - 70 Hz auto-sensing
Number of input connectors 1 Hard Wire 3-wire (2PH + G)
Efficiency at full load 100...275 V adjustable (half load)

Output
Maximum configurable power in VA 10000 VA
Max Configurable Power (Watts) 10000 W
Output Frequency (sync to mains) 50/60 Hz +/- 3 Hz sync to mains
Wave type Sine wave
Harmonic distortion Less than 2%
Crest factor 3 : 1
Bypass type Internal Bypass (Automatic and Manual)

Conformance
Product Certifications ENERGY STAR V2.0 (USA)
FCC part 15 class A
UL 1778

Environmental
Ambient Air Temperature for Operation 32…104 °F (0…40 °C)
Relative Humidity 0…95 % non-condensing
Operating altitude 0...10000 ft
Ambient Air Temperature for Storage 5…113 °F (-15…45 °C)
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0…50000 ft (0.00…15240.00 m)
Acoustic level 55 dBA
heat dissipation 2490 Btu/h
IP degree of protection IP20

Communications & Management
Free slots 1
Pre-Installed SmartSlot™ Cards Network management card 3 with environmental monitoring
Alarm Audible and visible alarms : prioritized by severity
Emergency Power Off (EPO) Yes

Surge Protection and Filtering
Surge energy rating 480 J

Ordering and shipping details
GTIN 731304304289

Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 18.15 in (46.1 cm)
Package 1 Width 39.37 in (100 cm)
Package 1 Length 23.62 in (60 cm)
Package 1 Weight 279.00 lb(US) (126.55 kg)

Contractual warranty
Warranty 3 years repair or replace (excluding battery) and 2 years for battery

APC Smart UPS RT 10kVA Double Conversion Online 10kW 208V SURT10000XLIAPC Smart UPS RT 10kVA Double Conversion Online 10kW 208V SURT10000XLIAPC Smart UPS RT 10kVA Double Conversion Online 10kW 208V SURT10000XLIAPC Smart UPS RT 10kVA Double Conversion Online 10kW 208V SURT10000XLIAPC Smart UPS RT 10kVA Double Conversion Online 10kW 208V SURT10000XLIAPC Smart UPS RT 10kVA Double Conversion Online 10kW 208V SURT10000XLIAPC Smart UPS RT 10kVA Double Conversion Online 10kW 208V SURT10000XLIAPC Smart UPS RT 10kVA Double Conversion Online 10kW 208V SURT10000XLIAPC Smart UPS RT 10kVA Double Conversion Online 10kW 208V SURT10000XLI

Overview
Lead time Usually in Stock
Main
Run time for load
W
information_stroke
Min-max: 1000-10000 W
3min 44s
Max. Capacity Used
information_stroke
100 %
Main Input Voltage 208 V
Other Input Voltage 240 V
Main Output Voltage 208 V
Other Output Voltage 240 V
Kw Rating 10000 W
Rated power in VA 10000 VA
output connection type 6 IEC 60320 C13
3 IEC Jumpers
4 IEC 60320 C19
Output connector type Hard Wire 3-wire (2PH + G) 1
Provided equipment CD with software
Documentation CD
Installation guide
Temperature Probe
USB cable
Warranty card
Web/SNMP Management Card
Batteries & Runtime
Run Time View Runtime Graph
action_new_window
Efficiency View Efficiency Graph
action_new_window
Battery Type Lead-Acid battery
Included Battery Modules 0
Typical recharge time 1.5 h
RBC Quantity 2
Battery Voltage +/-192 V (split battery referenced to neutral)
Battery Charge Power (Watts) 1191 W rated
Battery Life 3…5 year(s)
Replacement battery APCRBC140
action_new_window
SRT192BP2US
action_new_window
SRT192RMBPUS
action_new_window
Extendable Run Time 1
General
Topology Double Conversion Online
product web sub-family High density
Number of power module free slots 0
Number of power module filled slots 0
Redundant No
Physical
color Black
Height 17.01 in (43.2 cm)
Width 10.35 in (26.3 cm)
Depth 28.15 in (71.5 cm)
Net Weight 245.99 lb(US) (111.58 kg)
Mounting Location Front
Mounting preference No preference
Mounting Mode Rack-mounted with kit
Two post mountable 0
USB compatible Yes
Input
Input Frequency 40 - 70 Hz auto-sensing
Number of input connectors 1 Hard Wire 3-wire (2PH + G)
Efficiency at full load 100...275 V adjustable (half load)
Output
Maximum configurable power in VA 10000 VA
Max Configurable Power (Watts) 10000 W
Output Frequency (sync to mains) 50/60 Hz +/- 3 Hz sync to mains
Wave type Sine wave
Harmonic distortion Less than 2%
Crest factor 3 : 1
Bypass type Internal Bypass (Automatic and Manual)
Conformance
Product Certifications ENERGY STAR V2.0 (USA)
FCC part 15 class A
UL 1778
Environmental
Ambient Air Temperature for Operation 32…104 °F (0…40 °C)
Relative Humidity 0…95 % non-condensing
Operating altitude 0...10000 ft
Ambient Air Temperature for Storage 5…113 °F (-15…45 °C)
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0…50000 ft (0.00…15240.00 m)
Acoustic level 55 dBA
heat dissipation 2490 Btu/h
IP degree of protection IP20
Communications & Management
Free slots 1
Pre-Installed SmartSlot™ Cards Network management card 3 with environmental monitoring
Alarm Audible and visible alarms : prioritized by severity
Emergency Power Off (EPO) Yes
Surge Protection and Filtering
Surge energy rating 480 J
Ordering and shipping details
GTIN 731304304289
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 18.15 in (46.1 cm)
Package 1 Width 39.37 in (100 cm)
Package 1 Length 23.62 in (60 cm)
Package 1 Weight 279.00 lb(US) (126.55 kg)
Contractual warranty
Warranty 3 years repair or replace (excluding battery) and 2 years for battery
